Motor and joint modules

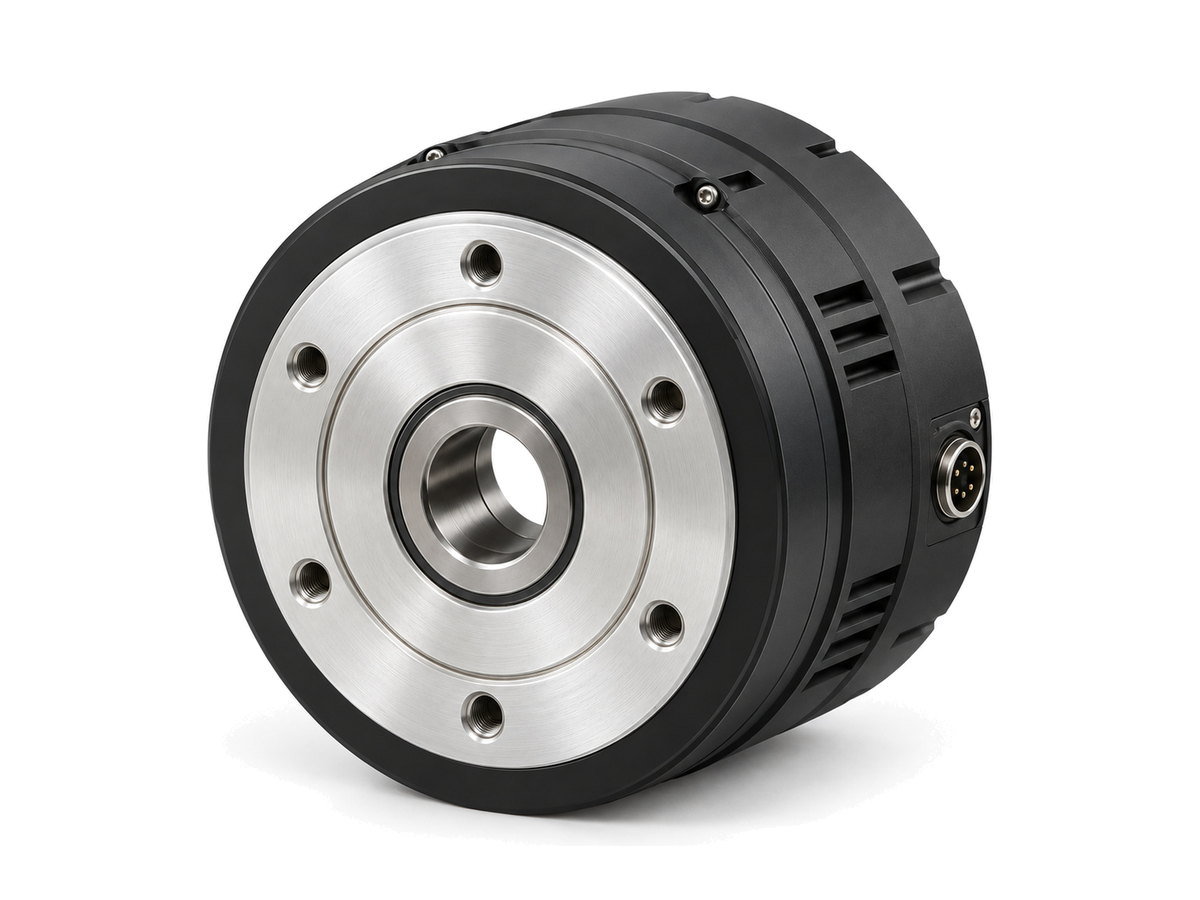

Integrated motor modules for wheel drives and joints: motor, reducer and encoder in one IP67 housing.
These modules replace a motor, gearbox, encoder and wiring with one sealed unit that bolts to the frame. The 1,500 W class at 24 to 48 V covers most wheeled and tracked platforms up to about a tonne; larger and smaller frames are available from the same factories.
Control is over CAN bus, which keeps the harness simple and lets one controller address several modules.
Specifications
Typical range; final values per model and order.
| Rated power | 1,500 W class (500 to 3,000 W available) |
|---|---|
| Supply | 24 to 48 V DC |
| Control | CAN bus; CANopen or vendor protocol |
| Integration | Motor, planetary reducer and encoder in one housing |
| Protection | IP67 |

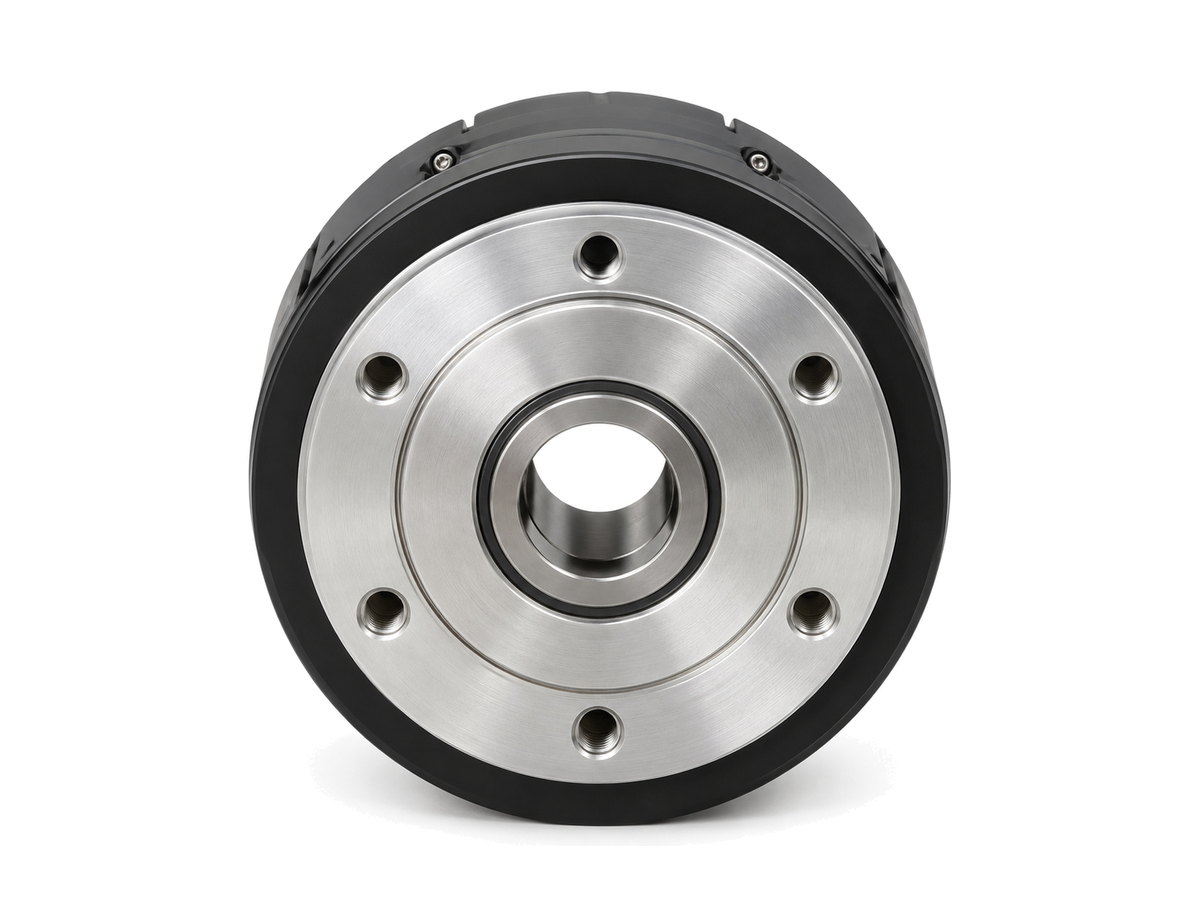

| Mounting | Flange with keyed hub; cable gland at rear |
| Operating temperature | −20 to +50 °C |
How it ships
What we inspect before it leaves the factory
- No-load run and current draw against specification
- Encoder output and CAN ID verified per unit on a sample
- IP67 spot test on one unit per batch
