Cameras and lenses
4K IP camera modules, thermal imaging units and matched lenses for navigation, inspection and recording on mobile platforms.

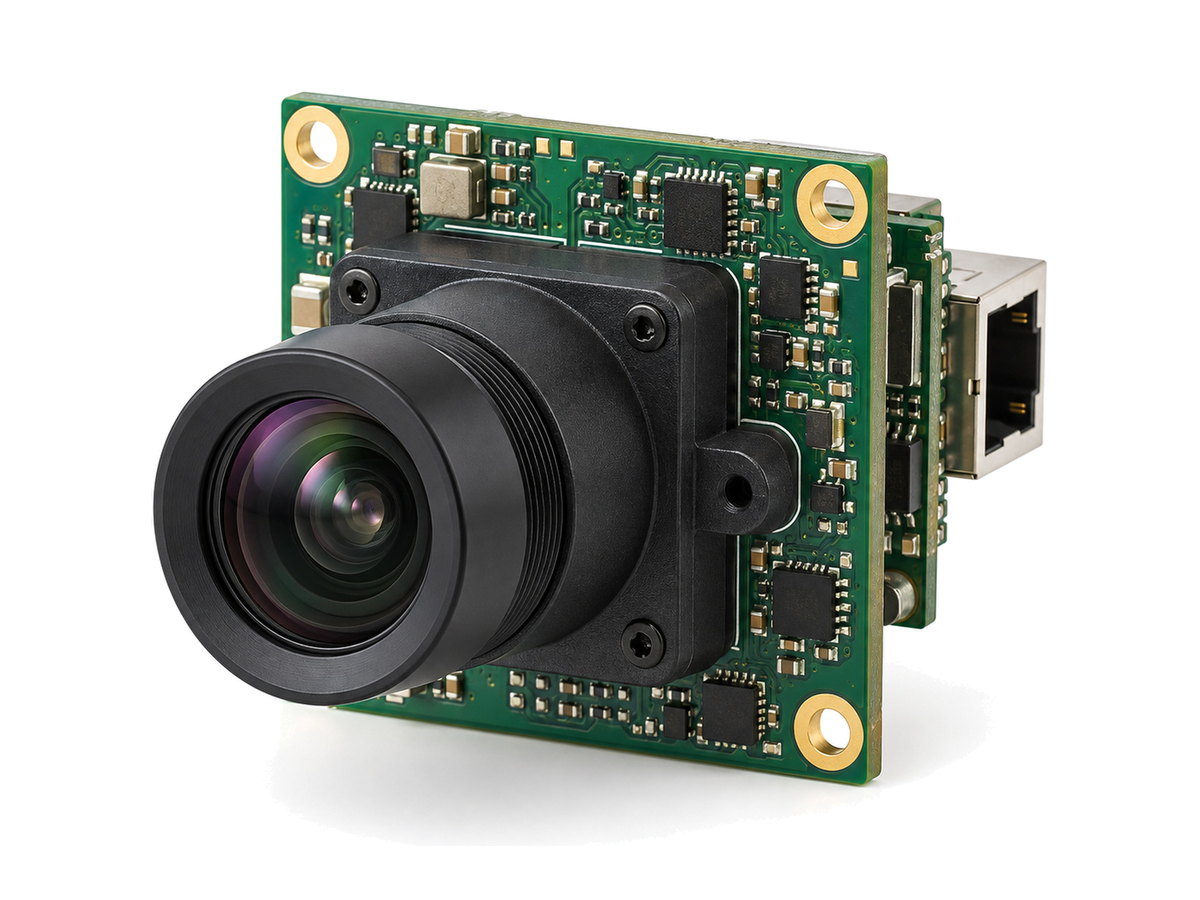

Camera modules are the most frequently reordered item in our catalogue. The usual configuration is an 8 MP starlight CMOS sensor on a compact board with H.265 encoding and a PoE or MIPI interface, paired with an M12 lens chosen for the field of view the platform needs.

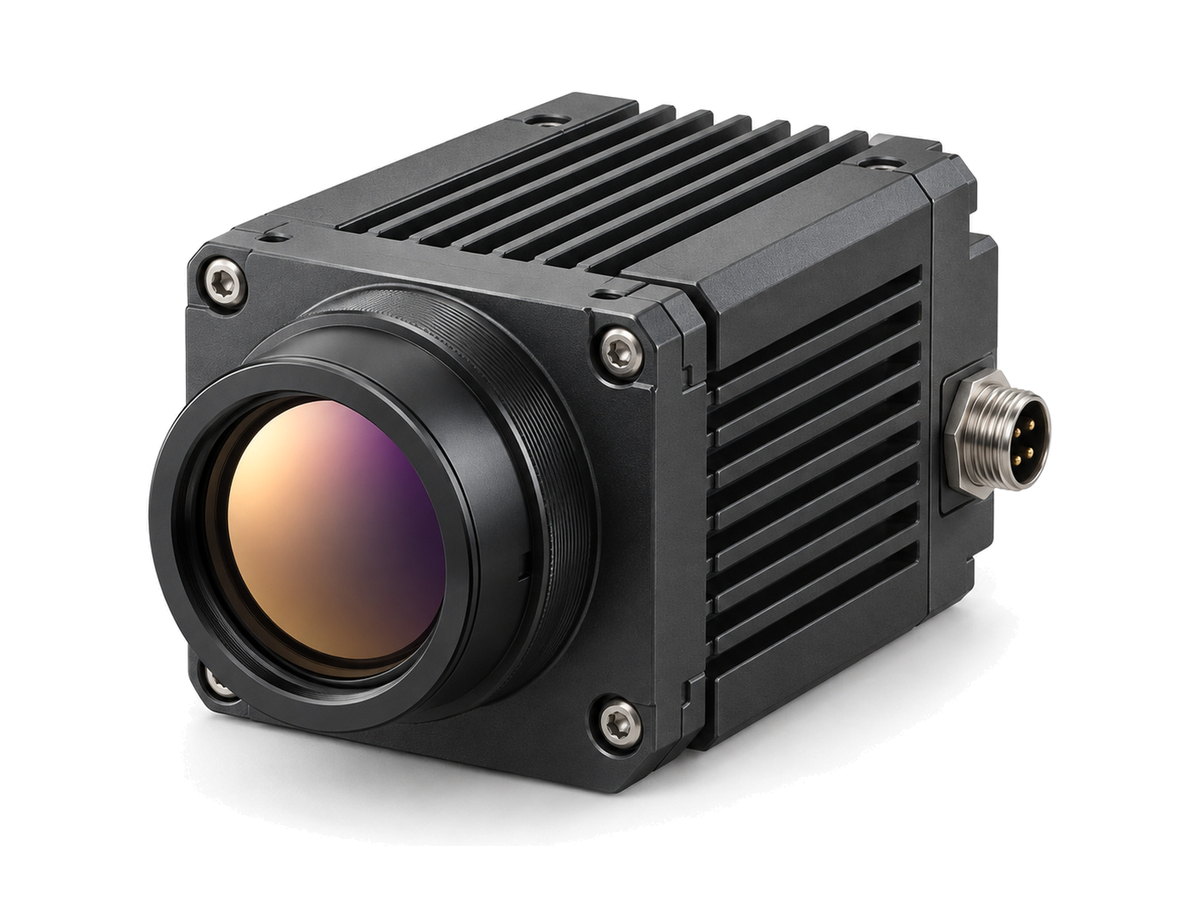

Thermal units come as sealed housings with germanium optics for use on vehicles and outdoor equipment. We also supply conventional 2 MP network cameras for fixed installations and the lenses that go with all of the above.
Specifications
Typical range; final values per model and order.
| Resolution | 2 MP (1080p) to 8 MP (4K) |
|---|---|
| Sensor | Starlight CMOS, low-light optimised |
| Compression | H.265 / H.264 |
| Interfaces | PoE Ethernet, MIPI CSI-2, USB 3 |
| Thermal cores | Uncooled LWIR, 384×288 or 640×512, 8 to 14 µm |
| Lenses | M12 and CS mount, 2.8 to 12 mm; fixed and motorised |
| Protection | IP66 / IP67 housings on request |
| Operating temperature | −30 to +60 °C (thermal units) |
How it ships
What we inspect before it leaves the factory
- Power-on test and stream check on a sample of each batch
- Lens focus and back-focus verified against the golden sample
- Thermal units: NETD and dead-pixel check on supplier test bench, with report
