GNSS and navigation modules
Multi-constellation GNSS receiver modules and antennas for positioning and heading on outdoor platforms.

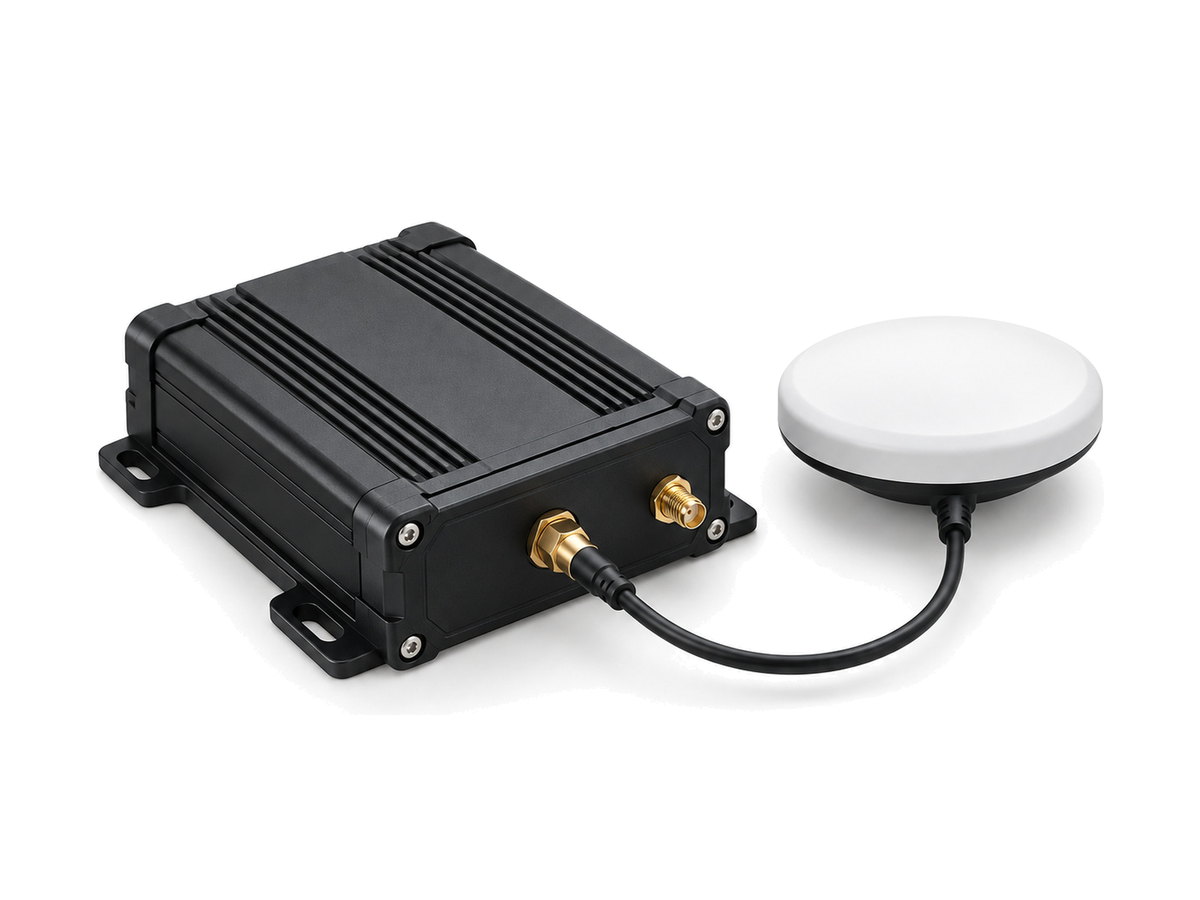

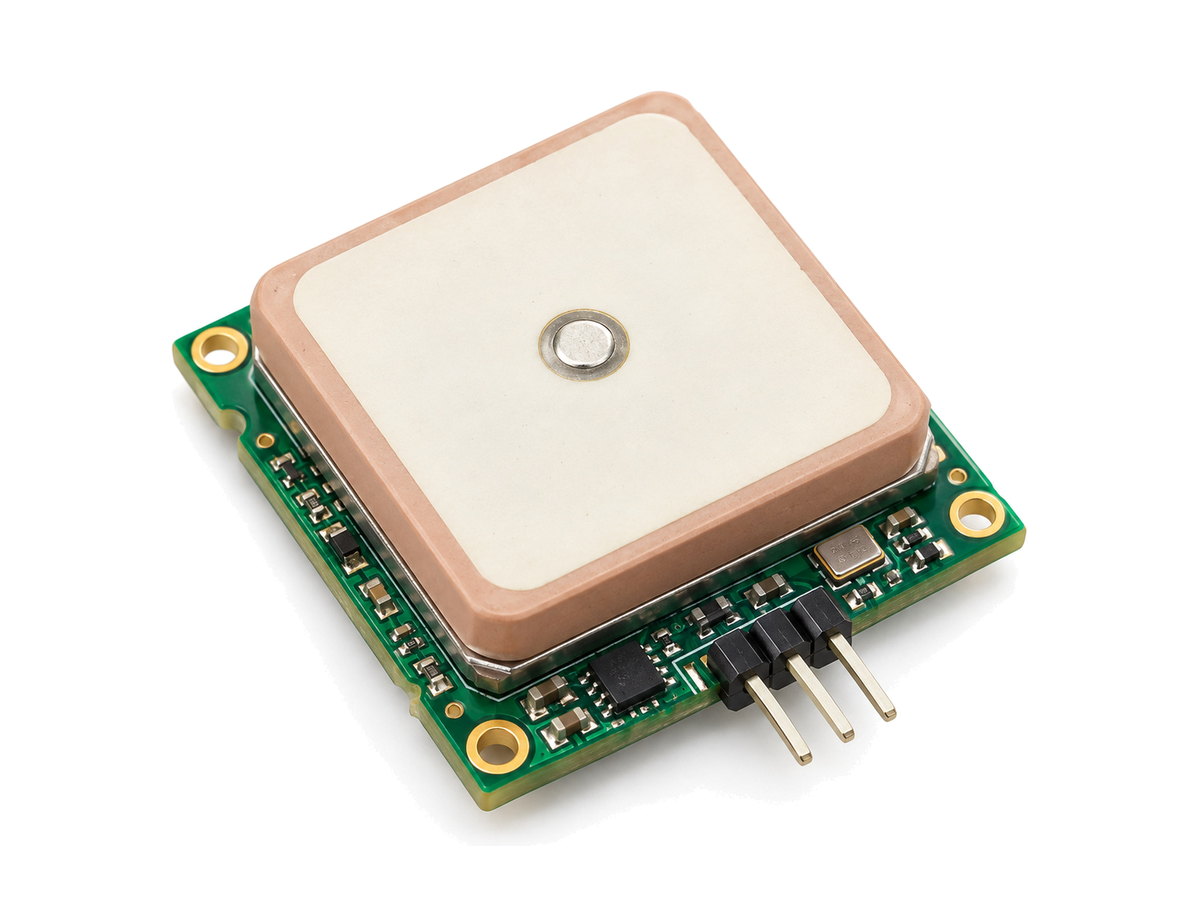

M9-class receivers track GPS, GLONASS, Galileo and BeiDou at up to 25 Hz, which is what most autonomy stacks expect from a navigation module. We supply them as sealed pucks with cable and connector, or as bare boards with a ceramic patch antenna for integration inside an enclosure.
For heading, modules with an integrated magnetometer are standard; dual-antenna RTK configurations are available on request.
Specifications
Typical range; final values per model and order.
| Constellations | GPS, GLONASS, Galileo, BeiDou, QZSS |
|---|---|
| Update rate | Up to 25 Hz |
| Interfaces | UART, I2C, USB |
| Compass | Integrated magnetometer on most models |
| Antenna | Active ceramic patch or helical |
| Supply | 3.3 to 5 V |
| Protection | Sealed puck, IP66 |
How it ships
What we inspect before it leaves the factory
- Cold-start fix time and satellite count checked on each sample
- Firmware version and protocol settings verified
- Cable pull test on sealed units
