Linear actuators
Electric linear actuators for lifting, tilting, steering and locking mechanisms on vehicles and equipment.

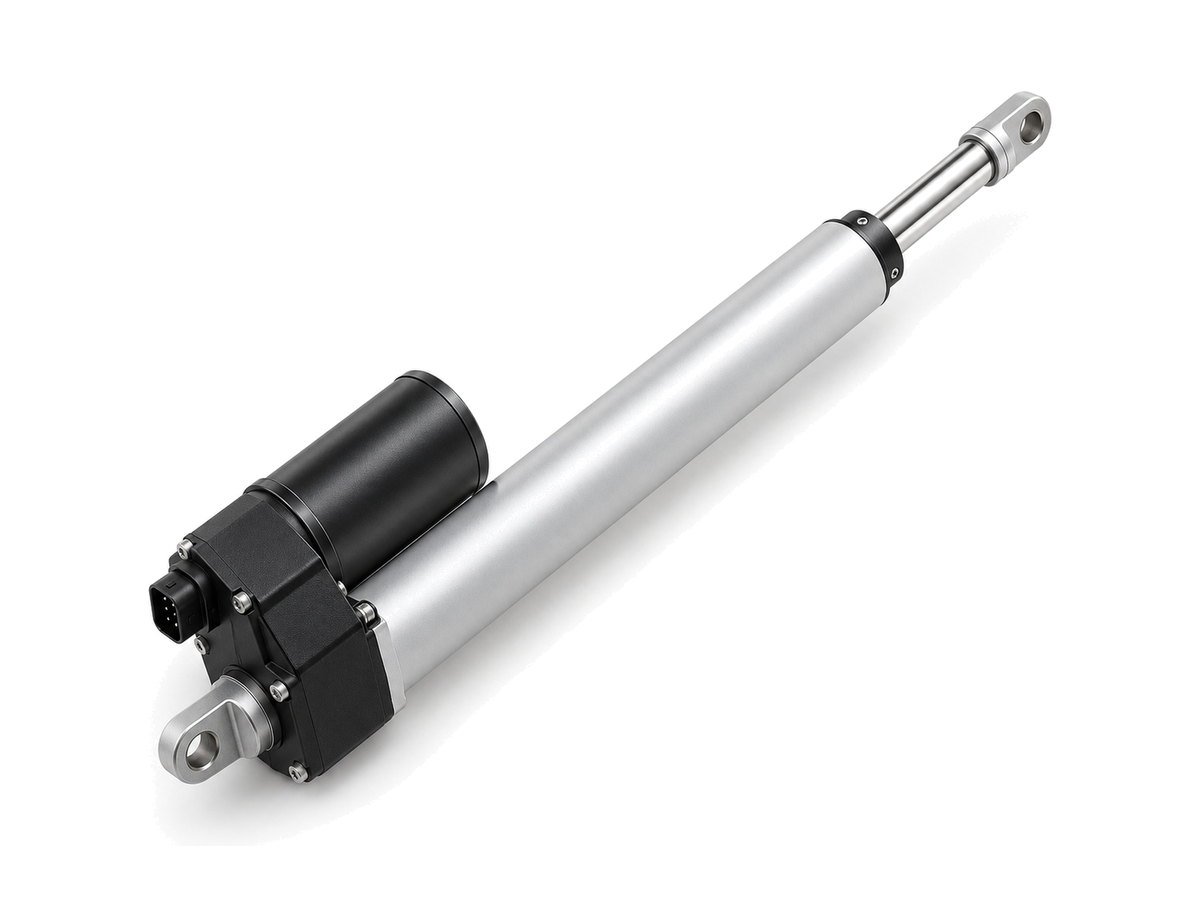

The standard unit is a 24 V actuator with 1,000 N of force and a 250 mm stroke at 15 mm/s, but force, stroke and speed are configured per order. Clevis ends, limit switches and position feedback are the usual options.
Actuators are dense and robust, so they travel well by sea; air is reserved for sample sets.
Specifications
Typical range; final values per model and order.
| Force | 1,000 N (300 to 6,000 N available) |
|---|---|
| Stroke | 250 mm (50 to 1,000 mm) |
| Speed | 15 mm/s at rated load |
| Supply | 24 V DC (12 V on request) |
| Mounting length | 365 mm at 250 mm stroke |
| Options | Limit switches, potentiometer or Hall feedback, IP66 |
| Cable | 1 m, open ends or connector |
How it ships
What we inspect before it leaves the factory
- Stroke, speed and current measured on a sample
- Limit switch operation verified
- Rod finish and seal inspection
