Panel instruments
Waterproof DC voltmeters, current monitors and battery indicators for operator panels and test benches.

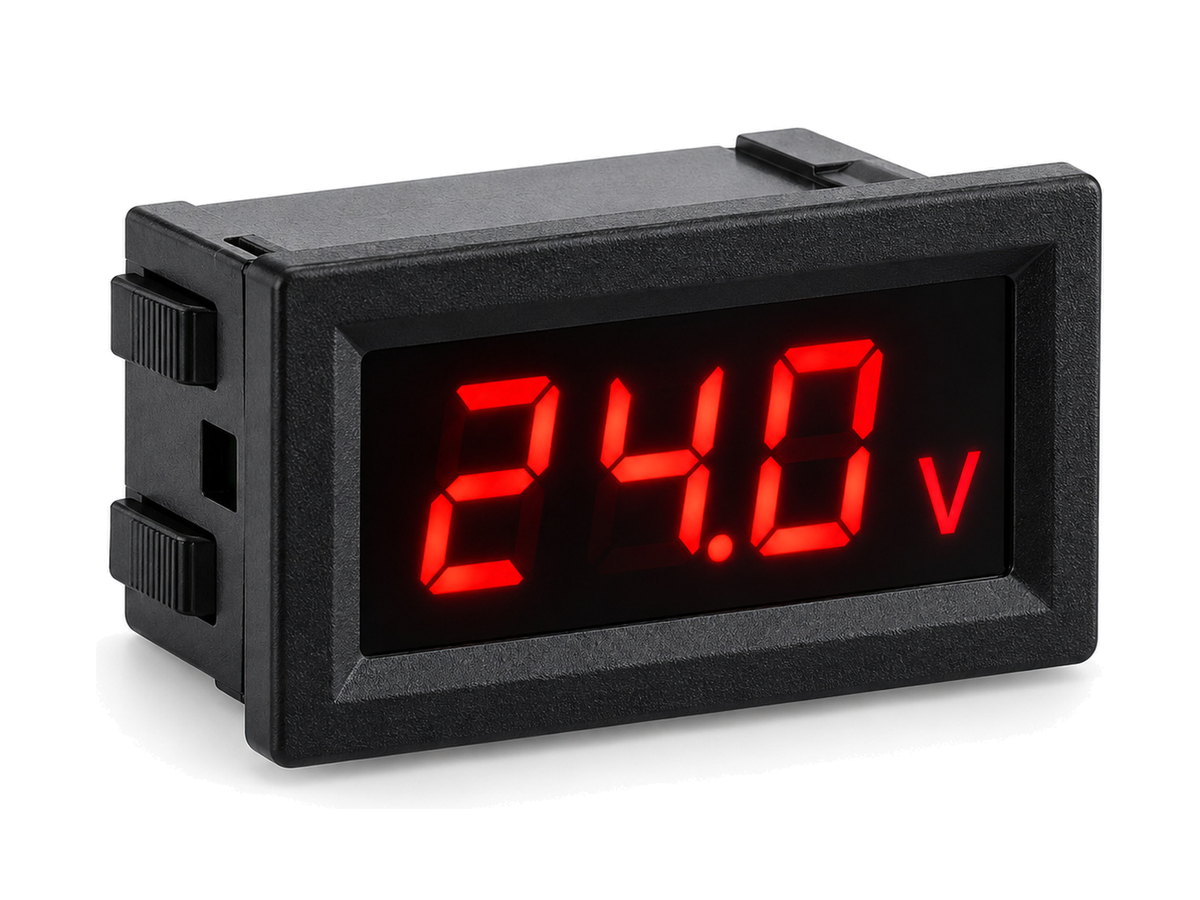

Panel instruments are the simplest line in the catalogue: sealed DC voltmeters and current monitors that drop into a panel cut-out and run from the battery they measure.
They ship in small volumes, usually consolidated with connectors or controllers.
Specifications
Typical range; final values per model and order.
| Range | DC 4 to 100 V |
|---|---|
| Accuracy | ±1 % |
| Display | LED, 0.56 inch digits |
| Protection | IP67 front |
| Mounting | Panel cut-out with gasket |
| Leads | Open ends or ring terminals |
How it ships
What we inspect before it leaves the factory
- Reading verified against reference supply
- Seal inspection
- Lead continuity test
