Motor controllers
Programmable brushless motor controllers on the open VESC platform, up to 84 V, with CAN and UART interfaces.
The controllers we ship most are 75 V-class units rated for 84 V peak and several hundred amps, used one per motor on wheeled and tracked platforms. They run open-source firmware that your engineers can configure and update themselves.

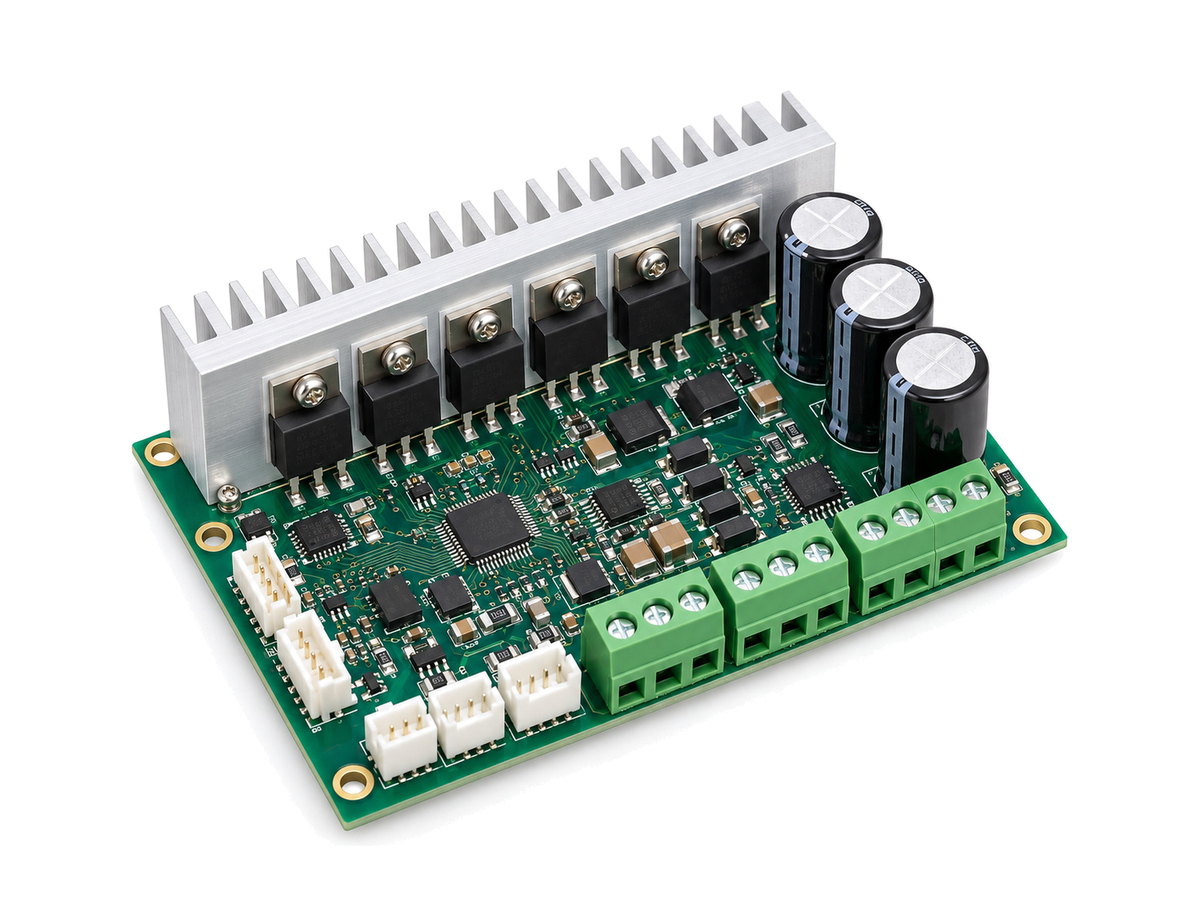

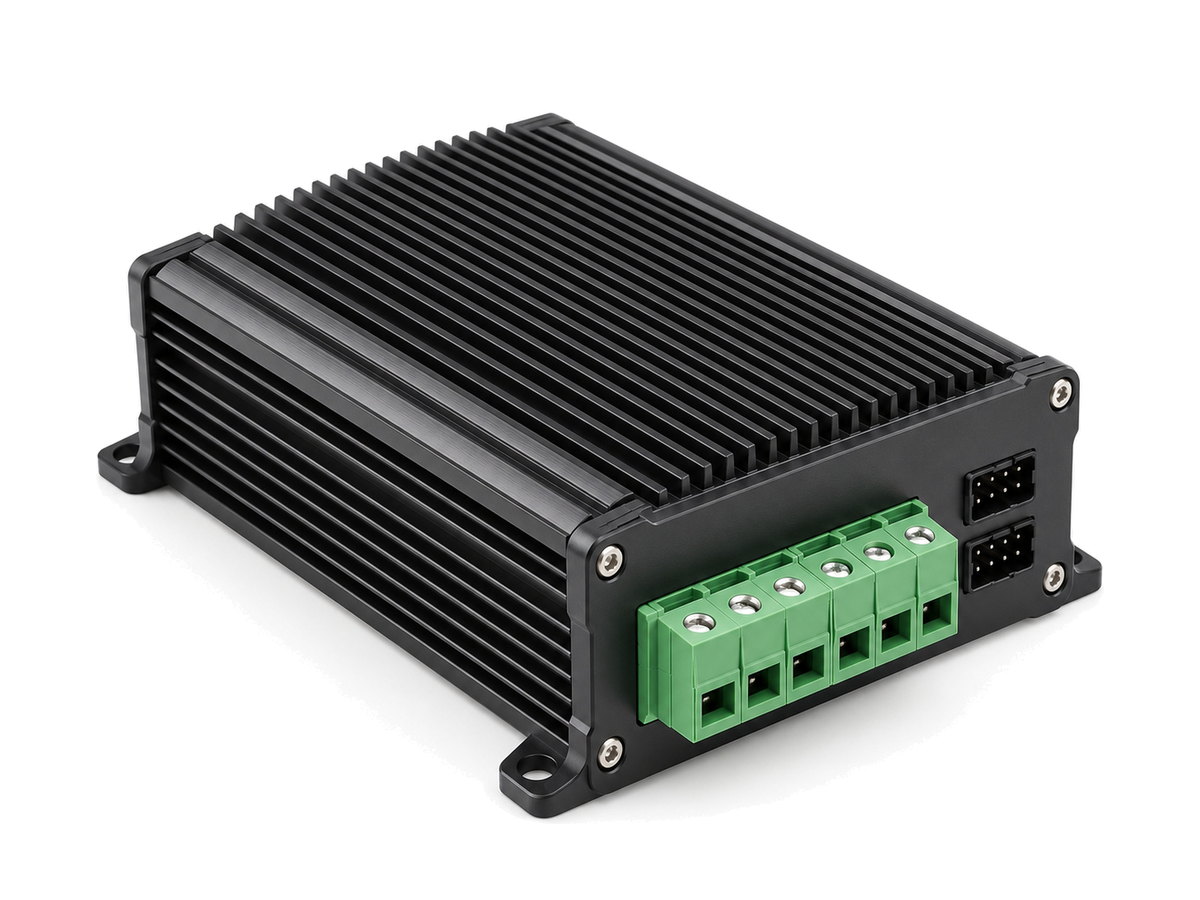

Boards come open-frame with a heatsink plate or in sealed aluminium enclosures with cable glands for outdoor use.
Specifications
Typical range; final values per model and order.
| Voltage | Up to 84 V (20S lithium) |
|---|---|
| Current | 100 to 200 A continuous, 450 A class peak |
| Firmware | Open VESC-compatible |
| Interfaces | CAN, UART, PPM, ADC |
| Cooling | Aluminium plate or finned enclosure |
| Protection | Open frame, or IP54 to IP67 enclosed |
| Operating temperature | −20 to +60 °C |
How it ships
What we inspect before it leaves the factory
- Power-on, firmware version and hardware revision check
- Motor detection run on a test motor for a sample
- Enclosure seal and gland torque on enclosed units
