Engine generator sets

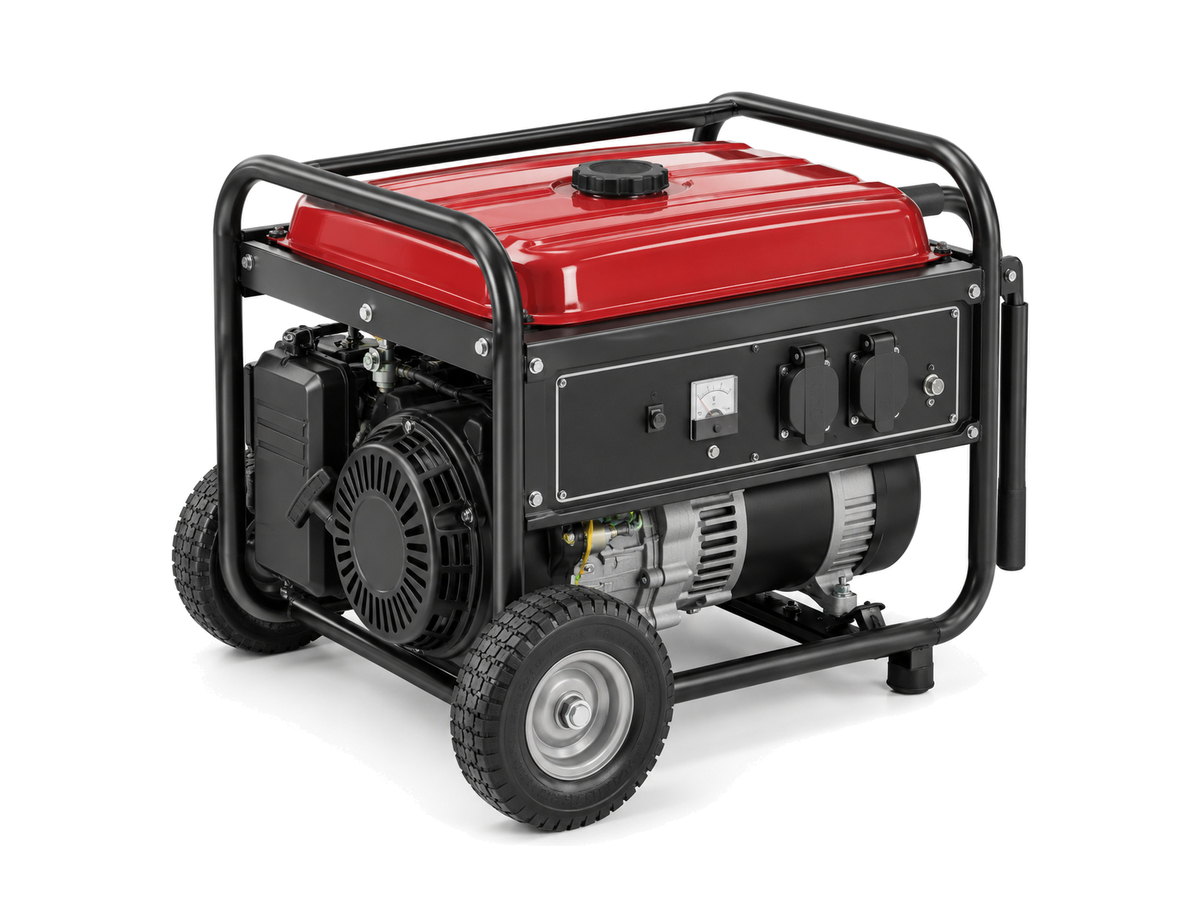

Air-cooled petrol generator sets, 7 kW / 8.75 kVA, as field and auxiliary power for charging and equipment.
Open-frame petrol sets around 7 kW are the workhorse size for charging batteries in the field and running tools. We ship them dry, with fuel and oil drained, so they move as ordinary cargo by sea.
Generator sets placed on the EU market need engines that meet Stage V non-road emission rules; we check the engine type approval before we buy.
Specifications
Typical range; final values per model and order.
| Rated output | 7 kW / 8.75 kVA (3 to 15 kVA range) |
|---|---|
| Engine | Air-cooled 4-stroke petrol |
| Voltage | 230 V 50 Hz; 12 V DC auxiliary |
| Start | Recoil; electric start option |
| Fuel tank | 15 to 25 l |
| Weight | 80 to 100 kg |
| Frame | Tubular steel with wheels and handles |
How it ships
What we inspect before it leaves the factory
- Load test at rated output on a sample
- Engine type approval and Stage V documents checked
- Oil and fuel drained; crating verified
