Connectors and cable assemblies
Circular connectors, IP67 cable connectors, power connectors and custom harnesses to drawing.
Connectors are ordered in thousands at a time and are easy to get wrong: contact count, gender, cable gauge and keying all have to match. We work from your drawing or sample and keep a reference set at the factory.

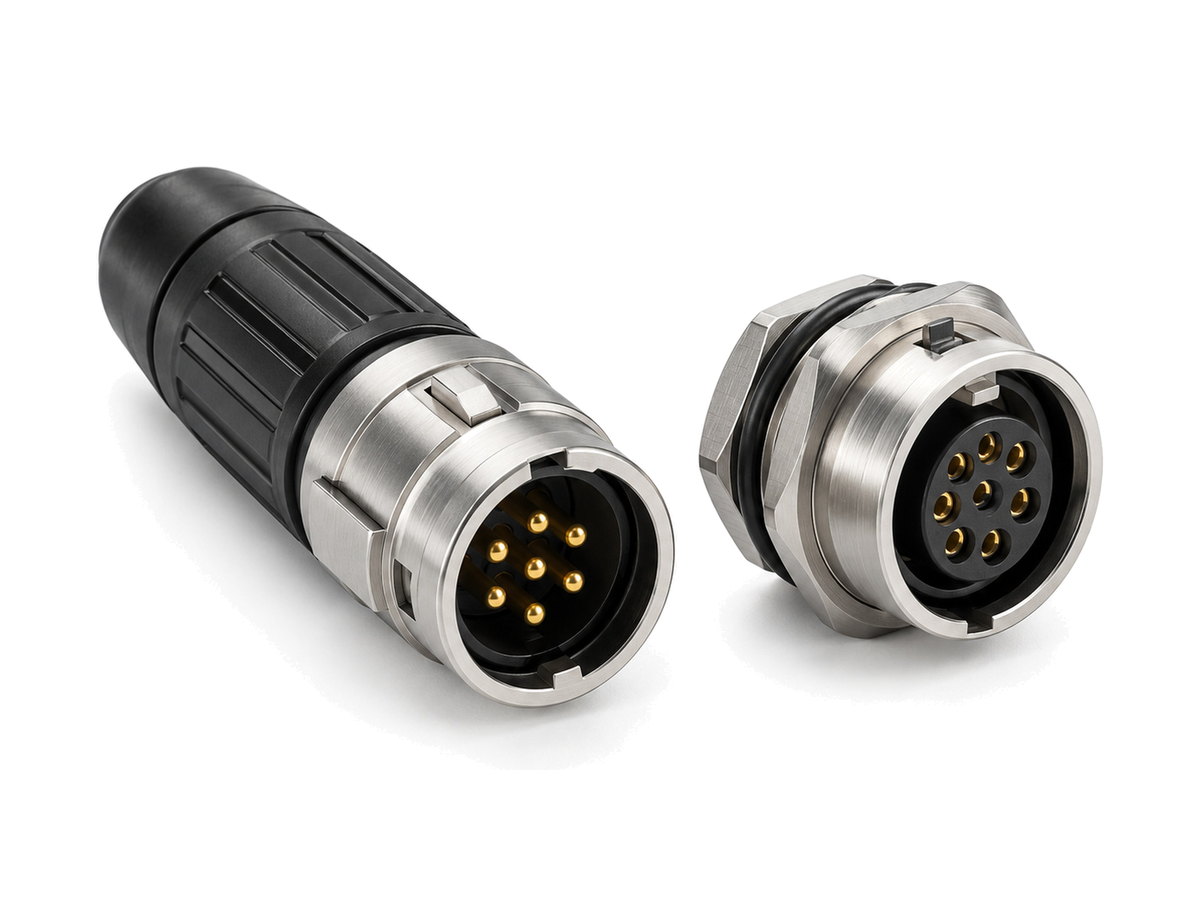

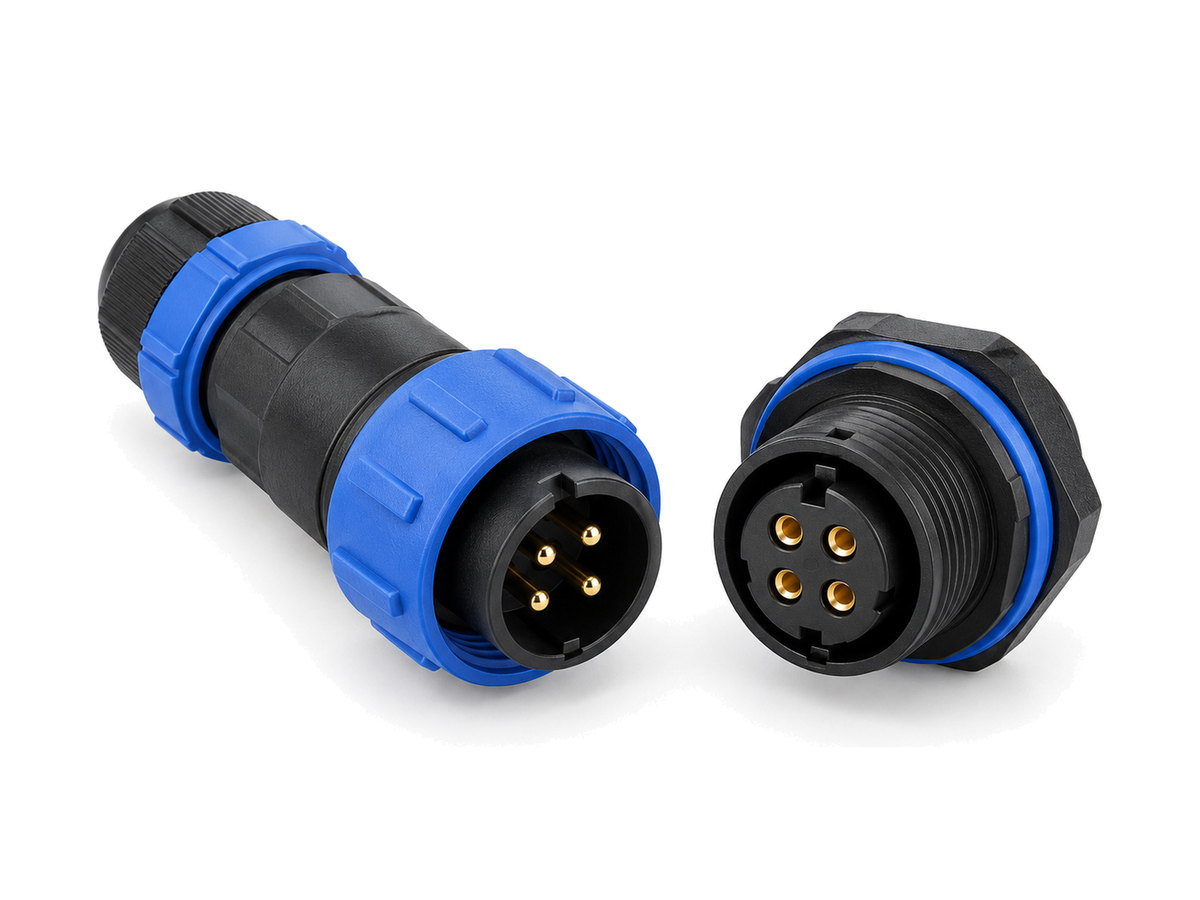

M16 and SD16 circular connectors cover signal and low power; SA12 to SA20 series handle outdoor use at IP67; power connectors cover 30 to 90 A.
Specifications
Typical range; final values per model and order.
| Circular | M16, SD16; 2 to 8 contacts; cable and panel versions |
|---|---|
| Outdoor | SA12 to SA20 series, IP67, 2 to 9 contacts |
| Power | 30 to 90 A connectors, bullet and blade |
| Contacts | Gold-plated brass |
| Harnesses | Assembled to drawing, tested |
How it ships
What we inspect before it leaves the factory
- Mating test with counterpart on a sample
- Contact resistance and plating check
- Count per bag verified against packing list
